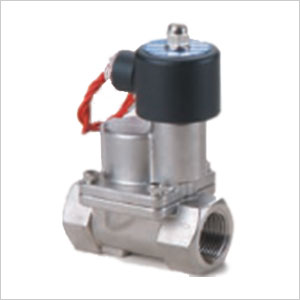

Solenoid Valve SUS

Model: SUS
Material: Cast SS 316
Best Usage: Stream, Water, Air & Oil
Working Pressure: 1-10kg
Working Temperature: 185°C (PTFE)
Size: 2" - 3"

Details:
1. SUS series is multiflex-drive, piston guide and conductive normal close.
2. Valve body made of investment casting SS 316
3. Standard Voltage: 110VAC / 220VAC / 24VDC. (50/60Hz)
4. Special voltage AC / DC for customer made.
5. Screwed end: BSPT, NPT, BSP.
6. Normal working temperature: 185°C (PTFE)
7. Applicable for working in High Frequency movement location.
8. AC Voltage tolerance: ± 10%
    DC Voltage tolerance: ± 1%
9. Not apply for fluid of
    - Liquid status when heat, solid status when cool
    - Viscosity over 20 cst.
    - Corrosive Fluid
