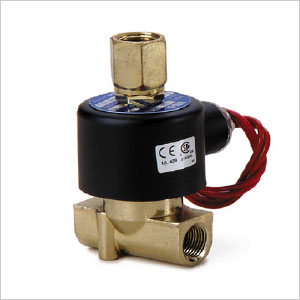

Solenoid Valve UA
Model: UA
Material: Brass
Best Usage: *Air & Water
Working Pressure: 0-10kg
Working Temperature: -5 - 80C
Size: 1/4" - 3/8"
Details:
1. UA series is direct-acting, conductive and normally closed.
2. Valve body made of Forged Brass
3. UA can be operated directly without pressure
4. Applicable for exhausing facility as power-off, such as with pneumatic control valve, cylinder control valve and diaphragm control valve, etc.
5. Standard Voltage: 110VAC / 220VAC / 24VDC. (50/60Hz)
6. Customized voltage AC / DC are available
7. Screwed end to BSPT. Option screwed: NPT, BSP Thread
8. Normal working temperature: 80°C (NBR)
9. AC Voltage tolerance:
± 10%
DC Voltage tolerance: ± 1%
10. Not apply for fluid of
• Liquid status when heat solid status when cool
• Viscosity over 50 cst.
• Corrosive fluid.
|
