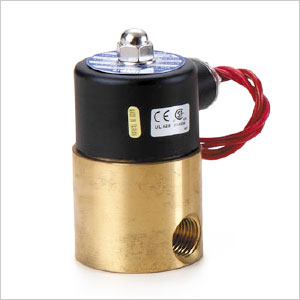

Solenoid Valve UAO

Model: UAO
Material: Brass
Best Usage: Water, Air & *Oil
Working Pressure: 0.5-15kg
Working Temperature: -5 - 80C
Size: 1/4" - 1/2"

Details:
1. UD series is multiflex-drive, piston guide, conductive normal close.
2. Valve body made of Brass
3. Standard Voltage: 110VAC / 220VAC / 24VDC. (50/60Hz)
4. Special voltage AC / DC for customer made.
5. Screwed end BSPT. NPT, BSP
6. Applicable for High Frequency movement.
7. Heavy oil must be pressing and heating.
8. UAO series is most applicable for sand blasting machine and High-Pressure Air/Oil spray system
9. Normal working temperature: 80°C (NBR)
10. AC Voltage tolerance: ± 10%
      DC Voltage tolerance: ± 1%
11. Not apply for fluid of
    - Liquid status when heat, solid status when cool
    - Viscosity over 50 cst.
    - Corrosive Fluid
