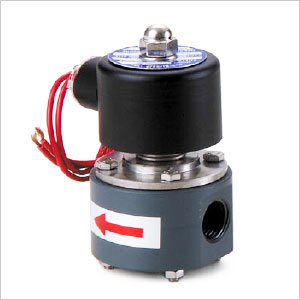

Solenoid Valve UDC

Model: UDC
Material: PVC
Best Usage: *HCI, *Sulfuric & *Water
Working Pressure: 0-1kg
Working Temperature: -5 - 80C
Size: 1/4" - 1/2"

Details:
1. UDC series is direct-acting, conductive to diaphragm and normaly closed.
2. Valve body made of PVC
3. UDC can be operated directly without pressure
4. Small size and easy assembly.
5. Standard Voltage: 110VAC / 220VAC / 24VDC. (50/60Hz)
6. Customized voltage AC / DC are available
7. Screwed end to BSPT. Option screwed: NPT, BSP Thread
8. Normal working temperature: 80°C
9. AC Voltage tolerance: ± 10%
    DC Voltage tolerance: ± 1%
10. Not apply for fluid of
     • Liquid status when heat solid status when cool
     • Prohibition for high frequency movement
     • Viscosity over 20 cst.
