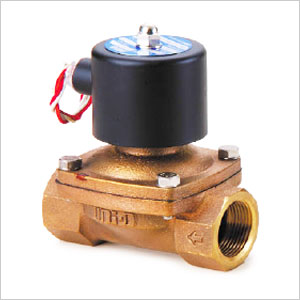

Solenoid Valve UG

Model: UG
Material: Brass
Best Usage: Water, Air, *Gas & Vacuum
Working Pressure: 0-5kg
Working Temperature: -5 - 80C
Size: 1/2" - 2"

Details:
1. UG/UV series is pilot diaphragm drive, connected to diaphragm. Normal close.
2. Valve body made of Forged Brass or Cast Bronze
3. UG/UV be operated directly without pressure
4. Standard Voltage: 110VAC / 220VAC / 24VDC (50/60Hz)
5. Special Voltage AC/DC for customer made.
6. Screwed end BSPT, NPT, BSP
7. Normal Working Temperature 80°C (NBR)
8. AC Voltage Tolerance ± 10%
    DC Voltage Tolerance ± 1%
9. Not apply for fluid of
    - Liquid status when heat, solid status when cool
    - Viscosity over 20 cst.
    - Corrosive Fluid
