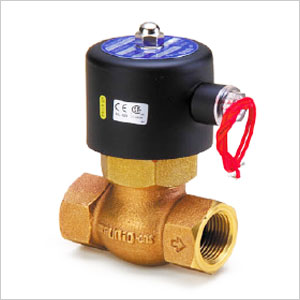

Solenoid Valve US

Model: US
Material: Brass
Best Usage: *Stream, Water & Air
Working Pressure: 1-15kg
Working Temperature: -5 - 185C
Size: 1/2" - 2"

Details:
1. US series is Multiplex-drive and conductive normal close.
2. Valve body made of Cast Bronze
3. Standard Voltage: 110VAC / 220VAC / 24VDC (50/60Hz)
4. Special Voltage AC/DC for customer made
5. Screwed end BSPT, NPT, BSP
6.Normal Working Temperature 185°C (PTFE)
7. In special case, US can made 20 KGF/CM, 30 KGF/CM, 40 KGF/CM. Please state the Type of fluid when order.
8. AC Voltage Tolerance ± 10%
    DC Voltage Tolerance ± 1%
9. Not apply for fluid of
    - Liquid status when heat, solid status when cool
    - Viscosity over 20 cst.
    - Corrosive Fluid
