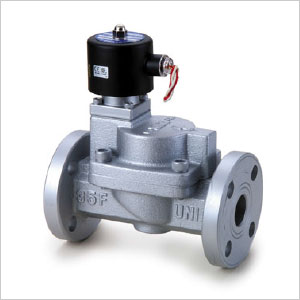

Solenoid Valve US-F

Model: US-F
Material: Cast Iron
Best Usage: Stream, Water, Air & Oil
Working Pressure: 1-10kg
Working Temperature: -5 - 185C
Size: 2" - 3"

Details:
1. USF (FC) series is multiflex-drive, pilot operated piston, conductive and normally closed.
2. Valve body made of FC-20
3. Standard Voltage: 110VAC / 220VAC / 24VDC. (50/60Hz)
4. Customized voltage AC / DC are available.
5. Flanged end to JIS 10K FF drilled. Customized specification ANSI 150lbs or DIN PN16
     when requested.
6. Max. Instantaneous temperature: 80°C (PTFE)
7. AC Voltage tolerance: ± 10%
    DC Voltage tolerance: ± 1%
8. Not apply for fluid of
    - Liquid status when heat, solid status when cool
    - Viscosity over 20 cst.
    - Corrosive Fluid
