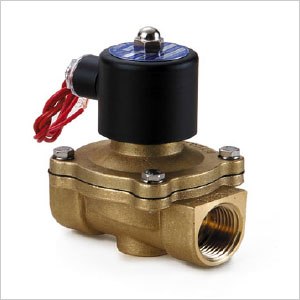

Solenoid Valve UW

Model: UW
Material: Brass
Best Usage: *Air, Water & Oil
Working Pressure: 0-5kg
Working Temperature: -5 - 80C
Size: 3/8" - 2"

Details:
1. UW series is pilot diaphragm drive normal close.
2. VAlve body made of 3/8" - 2" Forged Brass or 1.1/4" - 2" Cast Bronze.
3. UW can be operated directly without pressure.
4. Standard Voltage 110AC / 220VAC / 24VDC (50/60Hz)
5. Special Voltage AC/DC for customer made.
6. Screwed end BSPT, NPT, BSP.
7. Normal working temperature NBR (60°C) when requested
8. AC Voltage Tolerance ± 10%
    DC Voltage Tolerance ± 1%
9. Not apply for fluid of
    - Liquid status when heat, solid status when cool
    - Viscosity over 20 cst.
    - Corrosive Fluid
