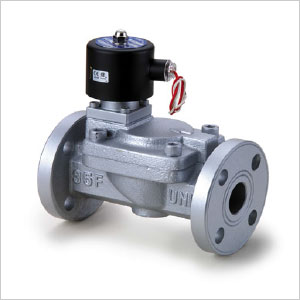

Solenoid Valve UW-F

Model: UW-F
Material: Cast Iron
Best Usage: Water & Air
Working Pressure: 0.5-8kg
Working Temperature: -5 - 80C
Size: 2" - 4"

Details:
1. UWF (FC) series is multiflex-drive, diaphragm guide, conductive normal close.
2. Valve body made of FC-20
3. Standard Voltage: 110VAC / 220VAC / 24VDC. (50/60Hz)
4. Special voltage AC / DC for customer made
5. Flanged end: JIS 10K, ANSI 150lbs or DIN PN16
6. Normal working temperature: 80°C (NBR)
7. AC Voltage tolerance: ± 10%
    DC Voltage tolerance: ± 1%
8. Not apply for fluid of
    - Liquid status when heat, solid status when cool
    - Viscosity over 20 cst.
    - Corrosive Fluid
