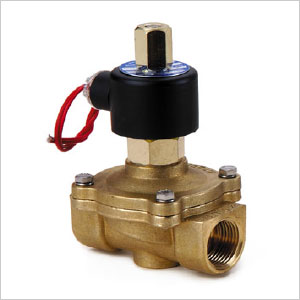

Solenoid Valve UW-NO

Model: UW-NO
Material: Brass
Best Usage: *Water, Air & Oil
Working Pressure: 0.1-8kg
Working Temperature: -5 - 80C (Normal Open)
Size: 1/2" - 2"

Details:
1. UW-NO series is direct multiflex-drive, connected diaphragm, conductive and normally open.
2. Valve body made of Brass
3. UW-NO can be operated directly without pressure
4. Standard Voltage: 110VAC / 220VAC / 24VDC. (50/60Hz)
5. Customized voltage AC / DC are available
6. Screwed end to BSPT. Option screwed: NPT, BSP Thread
7. Normal working temperature: 80°C (NBR)
8. AC Voltage tolerance: ± 10%
    DC Voltage tolerance: ± 1%
9. Not apply for fluid of
    - Liquid status when heat, solid status when cool
    - Viscosity over 20 cst.
    - Corrosive Fluid
